F25123 SURF FIN HONEYCOMB LONGBOARD

No.F25123
Honeycomb fins are made using a resin transfer molding process. This versatile fin material is light, and can be used in a variety of different conditions
  • F25123 SURF FIN HONEYCOMB LONGBOARD

Description

Product Overview

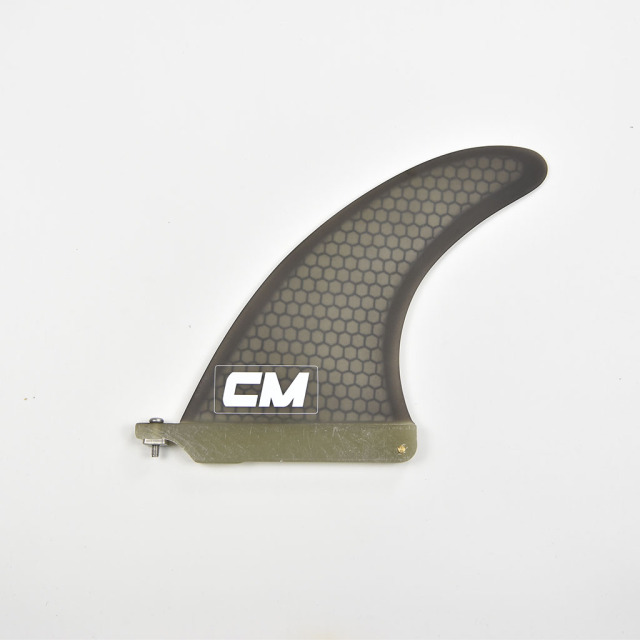

Built for longboards and mid-lengths that carry a fin box, this honeycomb longboard fin has a swept outline, a flat base and a single screw at the foot. We mould it in our own workshop as a honeycomb surf fin manufacturer, using a honeycomb core under a glass skin with epoxy resin. The core shows through the translucent grey finish in a cell pattern across the blade, and the CM mark sits at the base. Weight is the point of the build: the fin is light enough to carry a set one-handed down the beach, and stiff enough to hold its shape when the board is loaded into a turn. In the water it does longboard work first. It tracks while the rider crosses the board, holds through a drawn-out turn and releases cleanly at the end rather than washing out. It is a production fin rather than a one-off: a replacement centre fin, a second outline for a board whose original fin the rider never got on with, or a line for a shop's fin wall.

Template & Outline

  • Swept, raked outline. The blade leans back over the base instead of standing upright, so the fin loads progressively through a turn and releases smoothly rather than stalling at the end of it. - Moderate base chord. There is enough area at the foot to drive off the bottom, without so much that the fin feels locked while the rider is walking the board. - Foil that thins toward the tip. Thickness eases off toward the top of the blade, which keeps the tip light and lets the fin come out of a turn cleanly. - Straight, finished trailing edge. Water leaves the back edge without turbulence - the kind of detail you notice at speed in clean surf rather than in whitewater. - Flat, true base. The base is finished square, so the fin stands vertical in the box once the screw is tight instead of leaning to one side. - Drawn for longboard surfboard fins, not shortboards. The sweep is enough to turn from the middle of a longboard and stable enough to hold while the rider is forward on the nose, and the same outline is moulded as a single tab surf fin for boards that take tabs rather than a box.

Construction & Materials

The core carries the thickness: a honeycomb sheet holds the blade out to its full profile without the mass a solid layup would add, so the fin stands stiff across its area and still feels light in the hand. The glass fiber surf fin skin is the working surface - it takes the knocks, holds the foil and keeps the outline true when the board is pushed hard through a turn. Epoxy bonds core to skin and cures with very little shrink, so the fin comes out of the mould at the shape it was laid up in. Resin transfer moulding does the rest - the method we use as a honeycomb surf fin manufacturer. The dry core and glass go into a closed mould and resin is drawn through under vacuum, which gives a consistent resin-to-fibre ratio from one fin to the next. That matters more than it sounds for a shop: the tenth fin off the tool should weigh and flex like the one that was approved, which is what makes a reorder safe rather than a gamble. What arrives in the hand is a light fin with a firm spine. Push the tip and it resists, then returns; catch the trailing edge on a rail and the glass skin takes the hit rather than the core underneath. Because the layup is ours rather than bought in, the content is stated here as we mix it.

Box-Fin Fitment

  1. Check the box first. A box fin needs the recessed rectangular box in the tail, with the screw channel running fore and aft. If the board has two small slots instead, it takes a tab fin - the same template is available as a single tab surf fin and as a double tab version.
  2. Set the fin into the recess. Drop the base into the box with the screw plate already sitting in the channel underneath, fin pointing toward the tail.
  3. Choose the position before tightening. Slide the fin forward for a looser, quicker turn from the middle of the board, or back for more drive and hold when the rider is up on the nose.
  4. Seat the plate and start the screw by hand. Line the plate up under the channel, start the screw and turn it until the fin is firm. Hand-tight is enough - there is nothing to gain by cranking it down.
  5. Sight the fin before it goes in the water. Stand behind the board and check the fin stands vertical. If it leans, the plate is not seated in the channel; loosen, reseat and tighten again.
  6. Re-check after the first session. New fittings settle. Rinse the box and the screw with fresh water, dry them and check the screw again before the board goes back on the rack.
  7. One fitting across the box range. Every box template in our wholesale longboard surf fins range uses the same flat base and single screw, so the advice a shop gives on one fin holds for the rest of the wall.

Size & Rider Weight

SizeRider weight (kg)Rider weight (lb)Typical rider
XSUnder 55 kgUnder 120 lbGroms and lightweight surfers
S55-70 kg120-155 lbTeens and smaller adults
M65-80 kg145-175 lbAverage adults
L75-90 kg165-200 lbLarger adults
XLOver 85 kgOver 190 lbHeavier adults

Care & Handling

  • Rinse after every session. Fresh water over the blade, the screw and the box channel is the whole routine; salt left sitting in the channel is what makes a screw seize between trips.
  • Check the screw by hand, not by feel. A fin that has started to work loose usually shows it at the base before it shows in the water, and a half turn by hand is all it should need.
  • Look at the base first after a knock. Damage from a reef or a dropped board starts where the fin meets the box, so that is the area to inspect before the board goes back in the bag.
  • Never force a stiff screw with a tool. Free the plate, rinse the channel and start again - a cross-threaded screw retires more box fins than broken tips do.
  • Take it out for travel. A honeycomb longboard fin that is removed for a trip and refitted at the other end survives board bags, roof racks and baggage handling far better than one left standing in the box.
  • Store it flat and out of direct sun. Keep it off the floor of a closed car and out of a hot bag, and it will come out the same shape it went in.
  • Handle the edges, not the foil. Most damage to a glass fiber surf fin happens when it is set down hard on a floor or stood on its tip - lay it flat or put it back in the fin pocket.

Specifications

SpecificationDetail
ModelF25123
Material50% honeycomb core, 30% glass fiber, 20% epoxy resin
MouldingResin transfer moulding
Fin systemBox fin; the same build is also moulded as single tab and double tab
BaseFlat base with a single mounting screw
FinishGloss, translucent grey, honeycomb core visible through the skin
MarkingCM logo at the base
SizesXS, S, M, L, XL
Sizing basisRider weight
PositionLongboard and mid-length centre fin
FeelLight in the hand, stiff under load

Matching Accessories

A fin on its own is a replacement part; the wall around it is what a shop actually sells. The leash range runs from a 6 ft 6 mm Hypalon for small to medium surf up to a 9 ft 8 mm longboard leash built for bigger waves and longer boards, with 7 ft 7 mm and 8 ft 7 mm filling the middle of the ladder. Traction comes as tail pads, centre pads and waxless pads, and on a longboard the centre pad matters as much as the tail pad because the rider is standing further forward. Board bags start at a basic cover and run through regular and stretch covers, while the rack range covers travel rax and tie-downs, storage, display and bike carrying.

Matching the fin to that kit is mostly a question of length and weight. A longer, heavier longboard wants the longer leash and a cover with enough room to take the fin still fitted; a board carried on a roof or a bike rack wants the fin protected rather than loaded against a bar.

Shops and brands that want their own identity on the wall work with us as a custom surf fins supplier: the logo on the fin, matched across the leash, pad and cover, with artwork and placement agreed before production starts.

There is also a practical reason to plan the wall together. A single wholesale longboard surf fins order lets you set the fin sizes against the leashes, pads and covers you are taking, so the season opens with a matched set rather than a fin wall and an accessory drawer that do not line up.

Ordering & Confirmation

  1. Confirm the fitting. Box fin is the fitting covered here. If the boards on your floor take tabs, say so at the start and we will match the same outline in the right system. 2. Send the size split. Tell us how many of each size you want across XS to XL. When you are ordering longboard surfboard fins for a season, send the split by size and we will build to it rather than shipping a flat mix. 3. 4. Agree packing and labels. Tell us the format your shelf needs, whether the fins go out loose, on a header or labelled for a pegboard, and we will confirm what we can pack to. 5. Confirm the commercial terms. Quantities, lead time, payment terms and delivery are agreed with your sales contact for each order, because they depend on the size mix, the branding and the season. 6. Keep a reference fin. Hold one fin back from the first delivery and check the next order against it - weight, finish and the base - so a reorder is measured rather than assumed.

Scale & Supply Capability

CIMI is a factory-based supplier with 16 years in surf and watersports hardgoods, manufacturing at our own facility rather than sourcing through traders. Chain stores, supermarkets and surf-brand stores buy from us because one supplier covers a full accessory assortment, so a season's order and its reorders can be planned together. We take on OEM and private-label work, adapting designs, colourways and branding to your programme, and we schedule production against your agreed range plan. Send us your buy list and target dates, and we will confirm what we can make and when.

FAQ

Do you supply these fins for shops as well as for individual riders?

Yes. The fin is built as a trade item as much as a replacement part, and it sits inside a wholesale longboard surf fins range that covers box, single tab and double tab versions across five sizes. Shops generally build an order around the sizes their customers ride most, then fill in the ends of the ladder; for shops wanting their own branding, we work as a custom surf fins supplier.

How does a honeycomb core change the feel compared with a solid glass fin?

It takes weight out of the blade without making the fin soft. A honeycomb longboard fin holds its profile through a turn but carries much less mass in the tip than a solid layup, so it returns quickly and feels lively underfoot. It is a forgiving fin for everyday longboarding rather than a stiff blade built for a pro-level rider in heavy surf.

Who actually makes these fins?

We do, in our own workshop. We have been building surf hardware as a honeycomb surf fin manufacturer and OEM supplier since 2007, which is why the material percentages and the moulding method are ours to state rather than something bought in and relabelled.

My board does not have a fin box - can I still use this shape?

Yes. The same outline is moulded as a single tab surf fin and as a double tab version, so the shape is not tied to the box system. Tell us which fitting the boards use and we will match the order to it.

Which size should I put a rider on?

Start with weight. The steps overlap on purpose - S runs to 70 kg while M starts at 65 kg - so a rider often sits in two sizes. Go up when they are heavy for their height, ride a longer board or surf bigger, faster waves; stay down when they are light or surf small, soft conditions. At the counter, ask weight and board length first, then pick from the overlap.

How does this outline sit alongside the other longboard surfboard fins you make?

It is the swept box-fin shape in the honeycomb build, aimed at the longboard centre position. When you are stocking longboard surfboard fins, two or three outlines that do genuinely different jobs serve a shop better than a wall of near-identical shapes, and the rest of the range fills in the other systems and sizes.

Can the fins carry our own logo?

Yes. We work as a custom surf fins supplier for shops and brands that want their own name on the range, and the logo can be matched across the fin, the leash, the pad and the cover. Send the artwork and tell us where you want it to sit, and placement is agreed with you before production starts.

What happens if the fin gets dinged?

Small nicks along the edge of a glass fiber surf fin can be dressed back with fine paper and the fin kept in service. Anything that reaches the honeycomb core needs sealing before the fin goes back in the water - water in the core is what turns a cosmetic ding into a fin you have to replace.
